Description
| New Aftermarket Part From Total Power Parts |
| Applications: | |||||
|
| Specifications: | |
| Description | Alternator |
| Family | Letrika/MAHLE AAK |
| Volt | 12 |
| Amps | 70 |
| Condition | New |
| Regulator Clock | 9:30 |
| Mount Hole ID 1 | M8x1.25 |
| Mount Hole 1 Type | Threaded |
| Mount Hole 2 Type | Unthreaded |
| Mount Hole ID 3 | 8mm |
| Mount Hole 3 Type | Unthreaded |
| Fan Location | External |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M6x1.00 |
| Terminal ID 3 | W |
| Terminal 3 Size | M5x0.8 |
| Polarity | Negative |
| Number Of Grooves | 5 |
| Pulley Type | Solid |

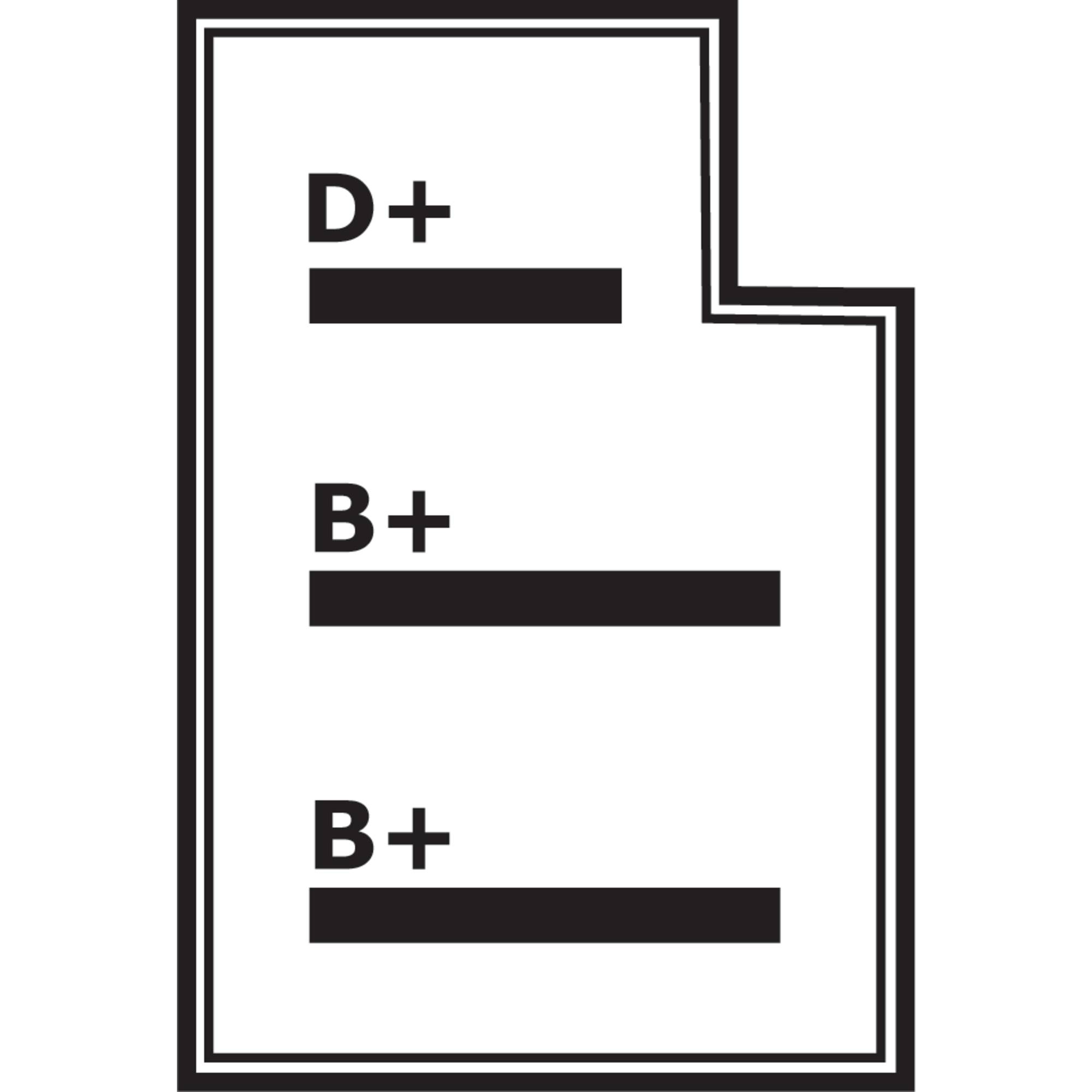

| Notes | W with Blade Terminal@ Capacitor Attached to SRE Housing@ Plug Code "B+, B+, D+" |
| Please verify this is the right part number you need before ordering. If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: | |
| Arrowhead | ALU0010, IA0728, IA0810, MG212, MG415 |
| Agco | 3778763M94 |
| Atlantic Quality Parts | 1100-0513, 1100-0518, 1200-0501, 1700-0503, 1700-0505, 3100-0500 |
| J&N Electrical Products | 400-30005, 400-30013, 400-30027 |
| CaseIH | 104020A1R, 92281C1, 92292C1, K306549, K311696, K311697, K311698, K956426 |
| JCB | 714/20400 |
| Lester | 12045 |
| Letrika/Iskra | 11.201.728, AAK4574, IA 0728, IA 0810 |
| Lucas Electric | 24129, 24158, 54022097A, 54022097B, 54022191, 54022193, 54022229, 54022242, 54022242B, 54022244, 54022255, 54022262, 54022262A, 54022282, 54022306, 54022306B, 54022483, 54022580, 54022616, LRA00461, LRA460, LRA461, LRA602, LRA958, LRB290 |
| Mahle | 11.201.728, AAK4574, IA0728, MG212, MG415 |
| Marelli | 54022752, 63324245, 63324407, MAN131, MAN153 |
| Massey Ferguson | 3478360M91, 3611576M91, 3611931M91, 3778763M94, 3930504R1, 3930504R91 |
| Other OEMs | 8EL725855-001, 8EL725882-001, 8EL737544-001, 8EL737740-001, CA1346IR, CA1494IR, CA564IR, CA600IR |
| Perkins | 185046360, 2871A141, 2871A148, 2871A154, 2871A163 |
| Prestolite | 66021136 |
| Rover | ADU8090, ADU8880, ADU8890, ADU9548, ADU9750, ASU1693, SDU8880, YLE101570, YLE101580 |
| Valeo | 436692, VA140 |
