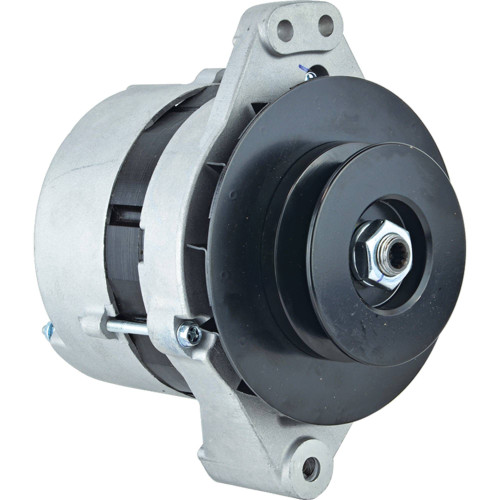

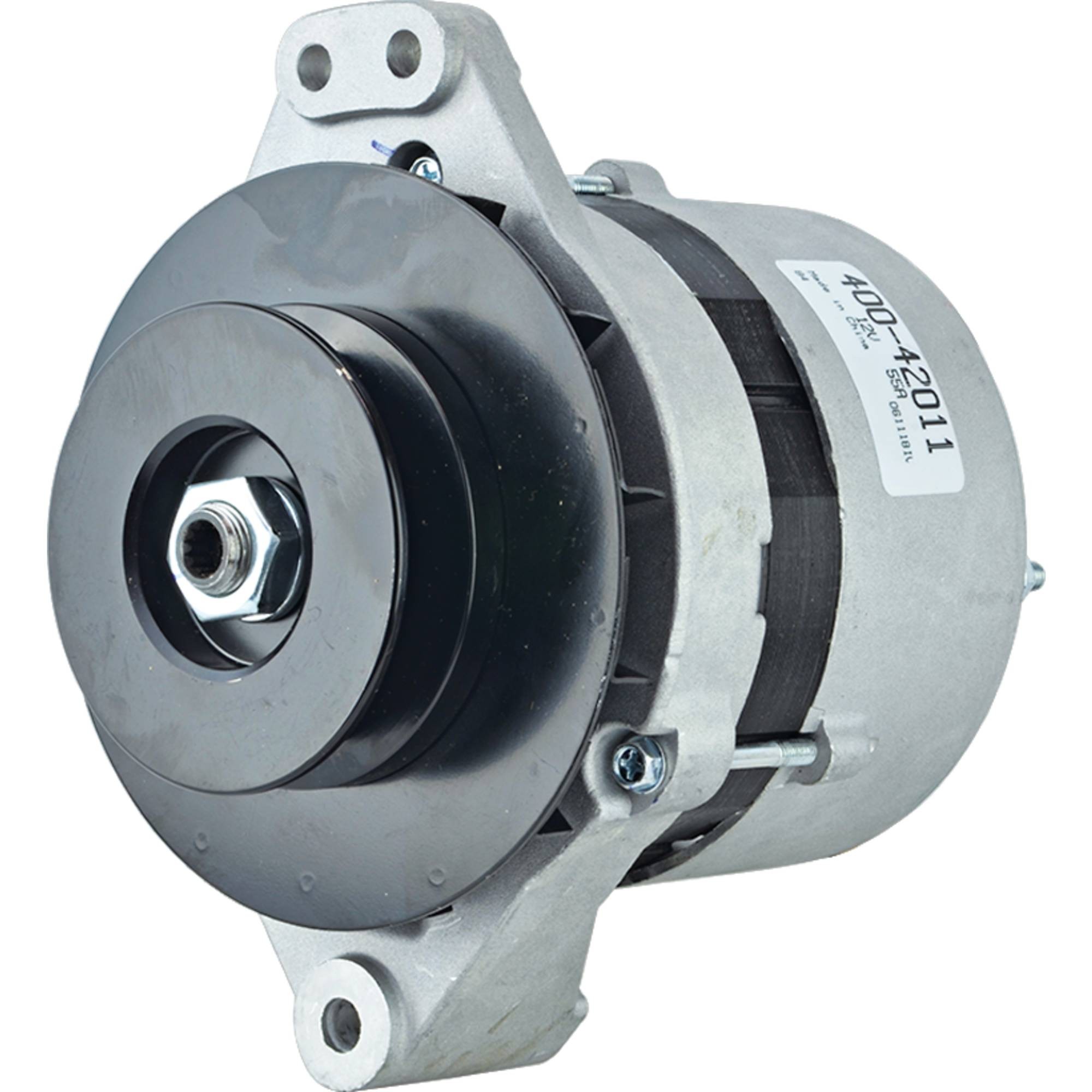

| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
| Atlas Copco | | XAS90 | 1997 | 4039 Diesel | | Atlas Copco | | XAS90 | | 4039 J.Deer | | Ingersoll Rand | | 185 | 1996 | John Deere Engine | | Ingersoll Rand | | 185 | 1997 | John Deere Engine | | Ingersoll Rand | | 185 | 1996 | | | Ingersoll Rand | | 185 | 1997 | | | John Deere | | 240 | 1999 | 46HP 3029 | | John Deere | | 240 | 2000 | 46HP 3029 | | John Deere | | 240 | 2001 | 46HP 3029 | | John Deere | | 240 | 2002 | 46HP 3029 | | John Deere | | 240 | 2003 | 46HP 3029 | | John Deere | | 240 | 2004 | 46HP 3029 | | John Deere | | 240 | 1999 | JD 3029D 46HP Engine | | John Deere | | 240 | 2000 | JD 3029D 46HP Engine | | John Deere | | 240 | 2001 | JD 3029D 46HP Engine | | John Deere | | 240 | 2002 | JD 3029D 46HP Engine | | John Deere | | 240 | 2003 | JD 3029D 46HP Engine | | John Deere | | 240 | 2004 | JD 3029D 46HP Engine | | John Deere | | 250 | 1999 | 61HP 3029 | | John Deere | | 250 | 2000 | 61HP 3029 | | John Deere | | 250 | 2001 | 61HP 3029 | | John Deere | | 250 | 2002 | 61HP 3029 | | John Deere | | 250 | 2003 | 61HP 3029 | | John Deere | | 250 | 2004 | 61HP 3029 | | John Deere | | 250 | 1999 | JD 3029T 61HP Engine | | John Deere | | 250 | 2000 | JD 3029T 61HP Engine | | John Deere | | 250 | 2001 | JD 3029T 61HP Engine | | John Deere | | 250 | 2002 | JD 3029T 61HP Engine | | John Deere | | 250 | 2003 | JD 3029T 61HP Engine | | John Deere | | 250 | 2004 | JD 3029T 61HP Engine | | John Deere | | 260 | 1999 | 69HP 3029 | | John Deere | | 260 | 2000 | 69HP 3029 | | John Deere | | 260 | 2001 | 69HP 3029 | | John Deere | | 260 | 2002 | 69HP 3029 | | John Deere | | 260 | 2003 | 69HP 3029 | | John Deere | | 260 | 2004 | 69HP 3029 | | John Deere | | 260 | 1999 | JD 3029T 69HP Engine | | John Deere | | 260 | 2000 | JD 3029T 69HP Engine | | John Deere | | 260 | 2001 | JD 3029T 69HP Engine | | John Deere | | 260 | 2002 | JD 3029T 69HP Engine | | John Deere | | 260 | 2003 | JD 3029T 69HP Engine | | John Deere | | 260 | 2004 | JD 3029T 69HP Engine | | John Deere | | 8875 | 1994 | 61HP Diesel Turbocharged , Diesel | | John Deere | | 8875 | 1995 | 61HP Diesel Turbocharged , Diesel | | John Deere | | 8875 | 1996 | 61HP Diesel Turbocharged , Diesel | | John Deere | | 8875 | 1997 | 61HP Diesel Turbocharged , Diesel | | John Deere | | 8875 | 1998 | 61HP Diesel Turbocharged , Diesel | | John Deere | | 8875 | 1994 | JD 61HP Turbo Dsl | | John Deere | | 8875 | 1995 | JD 61HP Turbo Dsl | | John Deere | | 8875 | 1996 | JD 61HP Turbo Dsl | | John Deere | | 8875 | 1997 | JD 61HP Turbo Dsl | | John Deere | | 8875 | 1998 | JD 61HP Turbo Dsl | | John Deere | | 2.9L | | Code 3106, 12, 1 | | John Deere | | 2.9L | | Code 3117, 21, 2 | | John Deere | | 2.9L | | Engine Code 3106 12 1 | | John Deere | | 2.9L | | Engine Code 3117 21 2 | | John Deere | | 240 Series II | | JD 3029D 53HP Engine | | John Deere | | 250 Series II | | JD 3029T 64.4HP Engine | | John Deere | | 260 Series II | | JD 3029T 72.4HP Engine | | John Deere | | 4400 Telescopic | | All | | John Deere | | 4400 Telescopic | | | | John Deere | | 4500 Telescopic | | All | | John Deere | | 4500 Telescopic | | | | John Deere | | CD3029DF | | 310 | | John Deere | | CD3029DF | | 311 | | John Deere | | CD3029DF | | Genset - Code 310 | | John Deere | | CD3029DF | | Genset - Code 311 | | John Deere | | CD4039DF | | 310 | | John Deere | | CD4039DF / TF | | Genset - Code 310 | | John Deere | | CD4039TF | | 310 | | John Deere | | CD4045TF | | 310 | | John Deere | | CD4045TF | | Genset - Code 310 | | John Deere | | CD6059TF | | Genset - Code 310 | | John Deere | | CD6068TF | | Genset - Code 310 |
|
| Specifications: |
| Description | Alternator |
| Volt | 12 |
| Amps | 55 |
| Regulator Clock | 2:00 |
| Quality Type | Heavy Duty |
| Rotation Direction | Clockwise |
| Mount Hole ID 1 | 8.300mm |
| Mount Hole 1 Type | Unthreaded |
| Mount Hole 2 Type | Unthreaded |
| Mount Hole ID 3 | 8.300mm |
| Mount Hole 3 Type | Unthreaded |
| Mounting Ear Thickness | 0.657"/16.700mm |
| Mounting Ear 2 Thickness | 0.657"/16.700mm |
| Mounting Ear 3 Thickness | 2"/50.800mm |
| Fan Location | External |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M6x1.00 |
| Terminal ID 3 | D+ |
| Terminal 3 Size | M5x0.8 |
| Terminal ID 4 | D+ |
| Terminal 4 Size | Spade |
| Terminal ID 5 | W |
| Terminal 5 Size | M5x0.8 Spade Combo |
| Terminal ID 6 | B- |
| Terminal 6 Size | M5x0.8 |
| Polarity | Negative |
| Number Of Grooves | 1 |
| Pulley Type | Solid |
| Pulley Outer Diameter | 3.343"/84.900mm |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| Arrowhead | 400-42011, AMP0001 |
| J&N Electrical Products | 400-42000, 400-42008 |
| Jannco | 400-42000R |
| John Deere | RE500502, RE57960, RE57961 |
| Lester | 12140 |
| Magneton | 443-113-515-765, 443-113-516-760, 443-113-516-764, 443-113-516-765, 443-115-516-762, 443-116-516-763, 9516765 |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
