| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
|
| Specifications: |

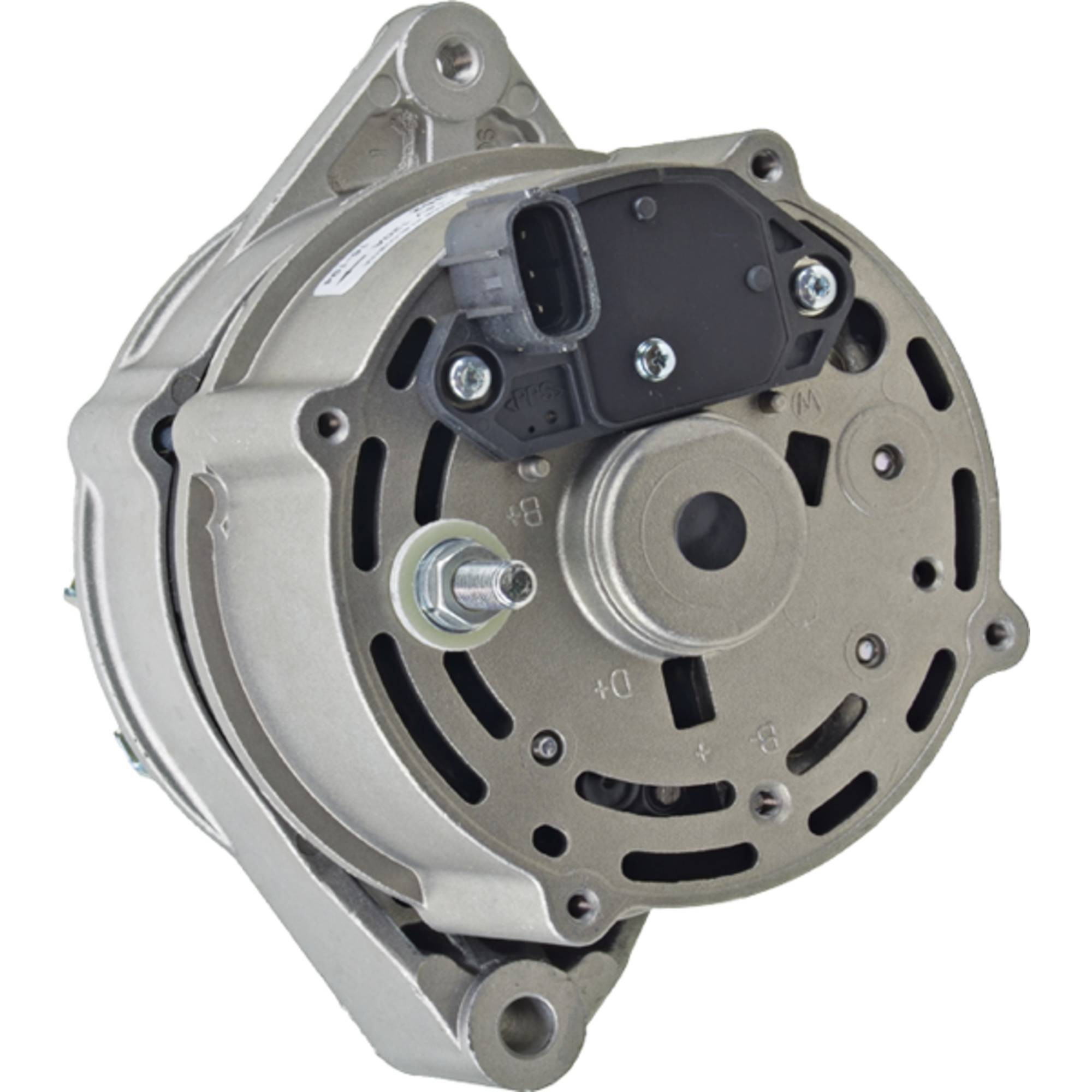

| Description | Alternator |
| Family | Letrika/MAHLE AAK |
| Volt | 12 |
| Amps | 120 |
| Condition | New |
| Regulator Clock | 11:30 |
| Mount Hole ID 1 | M8x1.25 |
| Mount Hole 1 Type | Threaded |
| Mount Hole 2 Type | Unthreaded |
| Fan Location | External |
| Regulator Location | External |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M8x1.25 |
| Terminal ID 3 | P |
| Terminal 3 Size | Spade |
| Terminal ID 4 | IGN |
| Terminal 4 Size | Spade |
| Terminal ID 5 | L |
| Terminal 5 Size | Spade |
| Polarity | Negative |
| Number Of Grooves | 8 |
| Pulley Type | SolID |
| Pulley Outer Diameter | 2.343" |
| Pulley Outer Diameter | 59.500mm |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| Arrowhead | IA1452, MG274 |
| CaseIH | 84254289, 84416587, 87422777 |
| Denso | 021080-1600, 102211-9090 |
| Ford/New Holland | 84254289, 87422777 |
| J&N Electrical Products | 400-52220 |
| Lester | 12776 |
| Letrika/Iskra | 11.204.060, 11.204.352, AAK3828, AAK4813, IA 1452 |
| Lucas Electric | LRA03698 |
| Mahle | 11.204.060, 11.204.319, 11.204.352, AAK3828, AAK4804, AAK4813, IA1452, MG274, MG691 |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
