| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
|
| Specifications: |

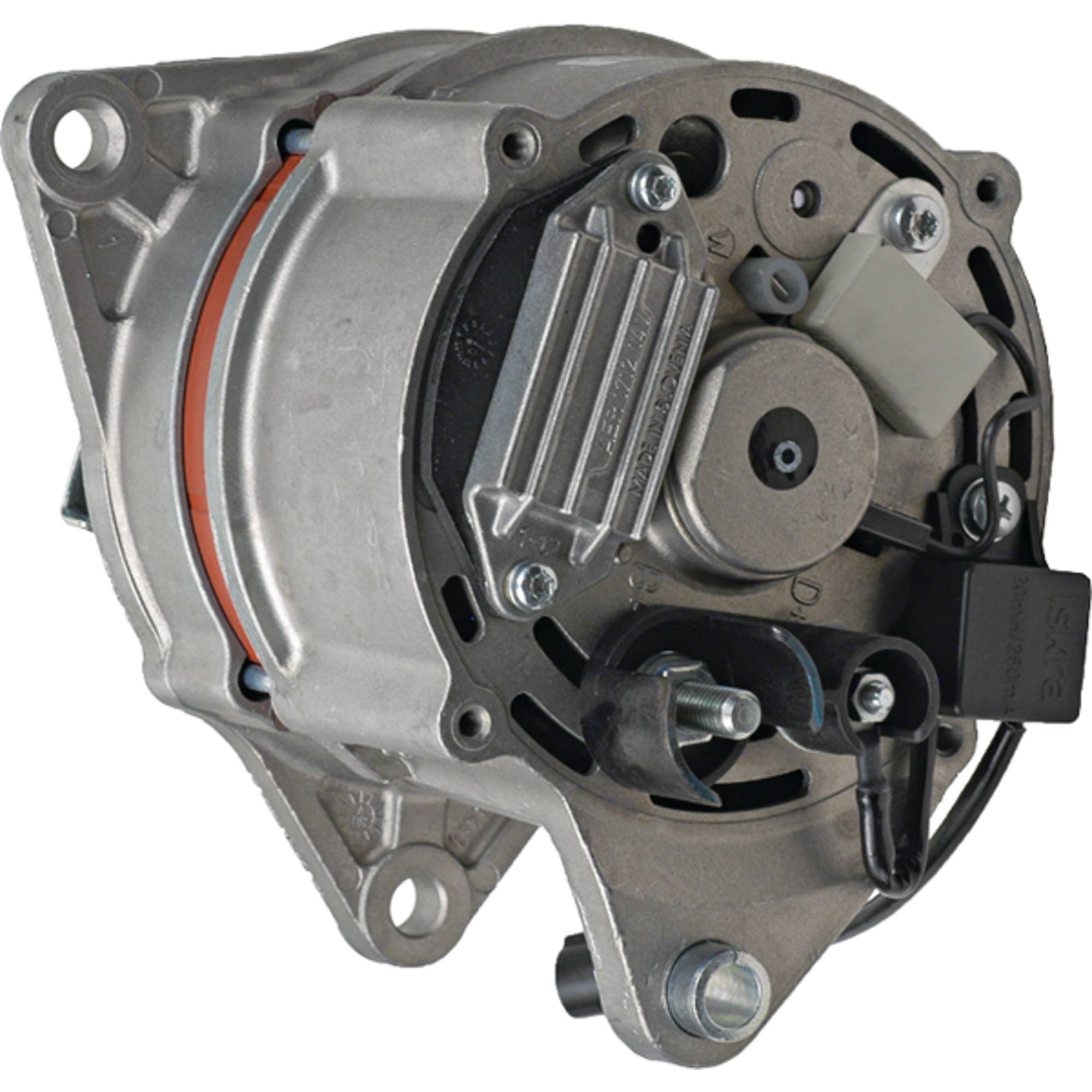

| Description | Alternator |
| Family | Letrika/MAHLE AAK |
| Volt | 12 |
| Amps | 120 |
| Condition | New |
| Rotation Direction | Clockwise |
| Mount Hole ID 1 | 10.200mm |
| Mount Hole 1 Type | Unthreaded |
| Mount Hole 2 Type | Unthreaded |
| Mount Hole ID 3 | 10.200mm |
| Mount Hole 3 Type | Unthreaded |
| Mounting Ear Thickness | 0.433" |
| Mounting Ear Thickness | 11mm |
| Mounting Ear 2 Thickness | 0.484" |
| Mounting Ear 2 Thickness | 12.300mm |
| Mounting Ear 3 Thickness | 0.795" |
| Mounting Ear 3 Thickness | 20.200mm |
| Fan Location | External |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M8x1.25 |
| Terminal ID 3 | D+ |
| Terminal 3 Size | Pin |
| Terminal ID 4 | W |
| Terminal 4 Size | Spade |
| Polarity | Negative |
| Number Of Grooves | 8 |
| Pulley Type | SolID |
| Pulley Outer Diameter | 2.343" |
| Pulley Outer Diameter | 59.500mm |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| Arrowhead | IA1352, IA1504, MG223 |
| Atlantic Quality Parts | 1100-0599, 1700-0541, 4800-0502, 5000-0501 |
| CaseIH | 47383500, 87311822 |
| Ford/New Holland | 47383500, 87311822 |
| Iveco | 504271461, 5801453378 |
| J&N Electrical Products | 400-29024 |
| Landini | 6510784M92 |
| Lester | 12785 |
| Letrika/Iskra | 11.203.302, 11.203.714, 11.204.327, 11.204.484, 11.204.490, AAK1832, AAK4314, AAK4810, AAK4858, AAK4860, IA 1205, IA 1352, IA 1504 |
| Lucas Electric | LRA03793 |
| Mahle | 11.203.302, 11.203.714, 11.204.327, 11.204.484, 11.204.490, AAK1832, AAK4314, AAK4810, AAK4858, AAK4860, IA1205, IA1275, IA1352, IA1504, MG223, MG673 |
| Perkins | T412776 |
