| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
| Caterpillar | | 312E | | | | Caterpillar | | 312F | | | | Caterpillar | | 313FL | | | | Caterpillar | | 314ECR | | | | Caterpillar | | 314ELCR | | | | Caterpillar | | 315FLCR | | | | Caterpillar | | 316EL | | | | Caterpillar | | 318D2L | | | | Caterpillar | | 318EL | | | | Caterpillar | | 318FL | | | | Caterpillar | | 320D2GC | | | | Caterpillar | | 320FL | | | | Caterpillar | | 323FLN | | | | Caterpillar | | 323FOEM | | | | Caterpillar | | C4.4 | | | | Caterpillar | | C7 | | | | Caterpillar | | C7.1 | | | | Caterpillar | | CP54B | | | | Caterpillar | | CP54BLRC | | | | Caterpillar | | CS54B | | | | Caterpillar | | CS54BLRC | | | | Caterpillar | | CS64BLRC | | | | Caterpillar | | M315D2 | | | | Caterpillar | | M317D2 | | | | Caterpillar | | M320D2 | | | | Caterpillar | | M322D2 | | | | Caterpillar | | M322D2MH | | | | Caterpillar | | M324D2MH | | |
|
| Specifications: |

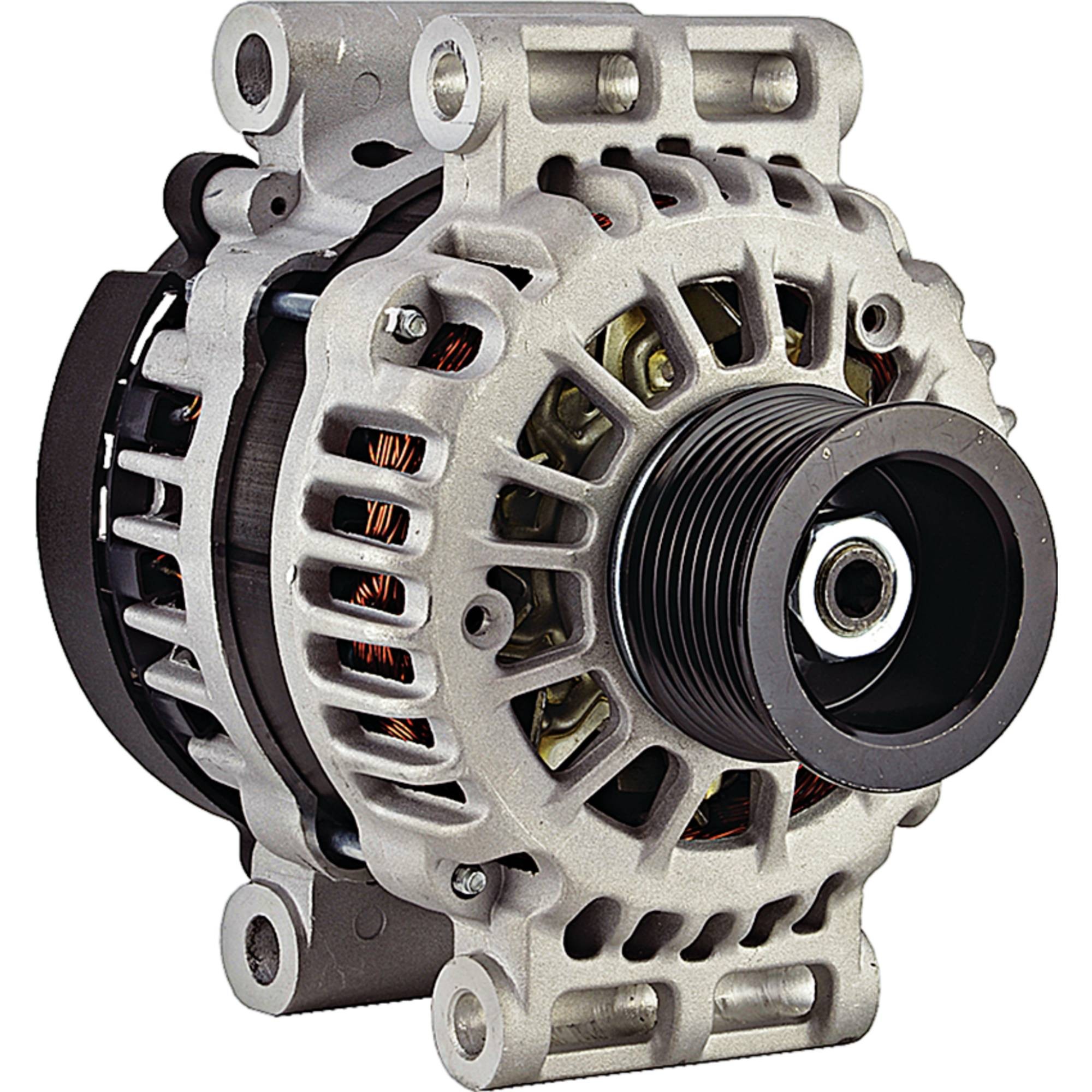

| Description | Alternator |
| Family | Delco 13SI |
| Volt | 24 |
| Amps | 85 |
| Regulator Clock | 3:00 |
| Rotation Direction | Clockwise |
| Mount Hole ID 1 | 10.700mm |
| Mount Hole 1 Type | Unthreaded |
| Mount Hole ID 2 | 12.600mm |
| Mount Hole 2 Type | Unthreaded |
| Mount Hole ID 3 | 10.700mm |
| Mount Hole 3 Type | Unthreaded |
| Mount Hole ID 4 | 12.600mm |
| Mount Hole 4 Type | Unthreaded |
| Mounting Ear Thickness | 3.150"/80mm |
| Mounting Ear 2 Thickness | 3.150" |
| Mounting Ear 2 Thickness | 80mm |
| Mounting Ear 3 Thickness | 3.150" |
| Mounting Ear 3 Thickness | 80mm |
| Mounting Ear 4 Thickness | 3.150" |
| Mounting Ear 4 Thickness | 80mm |
| Fan Location | Internal |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M8x1.25 |
| Terminal ID 3 | D+ |
| Terminal 3 Size | M5x0.8 |
| Terminal ID 4 | W |
| Terminal 4 Size | M5x0.8 |
| Polarity | Negative |
| Number Of Grooves | 8 |
| Groove OD | 2.370" |
| Groove OD | 60.200mm |
| Pulley Type | Solid |
| Pulley Outer Diameter | 2.543" |
| Pulley Outer Diameter | 64.600mm |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| Arrowhead | 400-12747 |
| Caterpillar | 321-8932 |
| Delco | 8600366 |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
