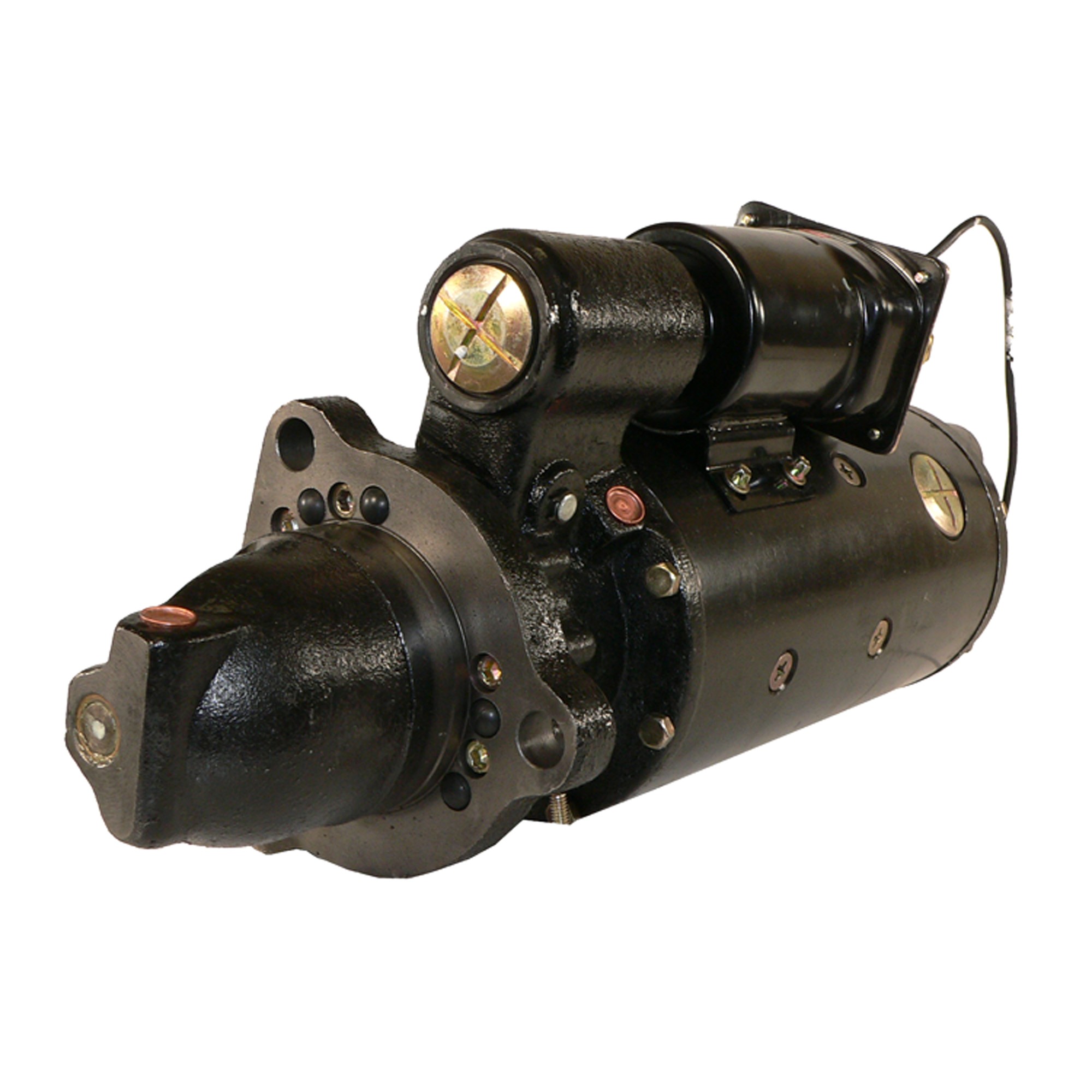

Brand NEW CATERPILLARENGINE STARTER From DB Electrical
|
| Applications: |
| Caterpillar 3306, 3406, 3408, 3412 & D348 & Cummins K19, K38, K50, QSK19, QST30& V28 Engine Applications |
| Specifications: |
| Type: | DD |
| Voltage: | 24 Volts |
| Rotation: | CW |
| Teeth/Splines: | 11 Teeth/Splines |
| Pinion/Splines OD: | 57.4mm / 2.260in |
| Mounting Hole 1: | 16mm ID - Unthreaded |
| Mounting Hole 2: | 16mm ID - Unthreaded |
| Mounting Hole 3: | 16mm ID - Unthreaded |
| New or Remanufactured: | New |
| Approximate Weight: | 80.2lbs / 36.45 kg |
| Notes: | This is a Common 50MT (24V-11T) Starter ManufacturedWith thePRELUB Brand Oil Pump on the Rear of the Starter Which Pumps OilThroughout the Engine to Generate Oil Pressure Prior to Engine Cranking(10 to 15 Second Duration). |
| Replaces these part numbers: |
| LESTER | 6956
|
| CATERPILLAR | 0R4998, 10R0936, 1249780, 124-9780, 4Q5454, OR4998 |
| CUMMINS | 3084198, 3603868PL, 3628757, 3628997 |
| DELCO | 10461188, 10479083, 10479087 |
| PRELUB | 100138, 100203, 100208, 100234, 100236, 100237, 100246, 100273, 100280, 100282, 100287, 100372, 100769 |
| WILSON | 91-35-1016 |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
