| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
|
| Specifications: |

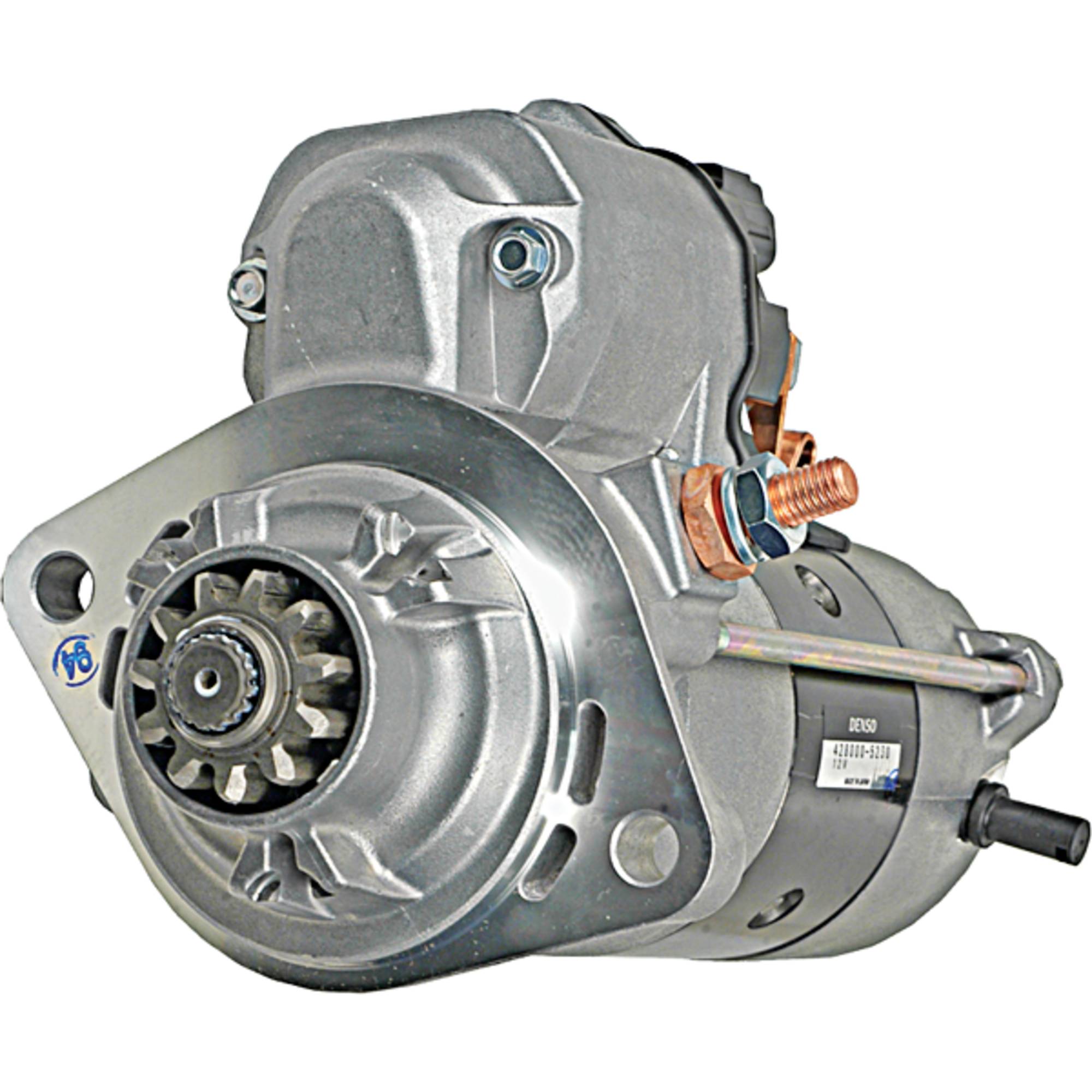

| Description | Starter |
| Family | Denso PA90S |
| Volt | 12 |
| Power | 3 kw |
| HP | 4.023 |
| Condition | New |
| Rotation Direction | Clockwise |
| Electric Starter Type | Planetary Gear Reduction (PLGR) |
| Number Of Teeth | 11 |
| Gear OD | 1.567" |
| Gear OD | 39.800mm |
| Length | 10.945" |
| Length | 278 mm |
| Mount Hole Id 1 | 11.200mm |
| Mount Hole 1 Type | Unthreaded |
| Mount Hole 2 Type | Unthreaded |
| Notes | Battery Stud M10-1.5 Threaded@ Motor Stud M10-1.5 with Connector Attached to CE Housing@ Blade Switch Terminal |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| Arrowhead | ND428000-5230, ND428000-9340, SND0704 |
| Denso | 428000-523, 428000-5230 |
| Freightliner | NPD428000-5230 |
| J&N Electrical Products | 410-52521 |
| Lester | 19808 |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
