| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
|
| Specifications: |

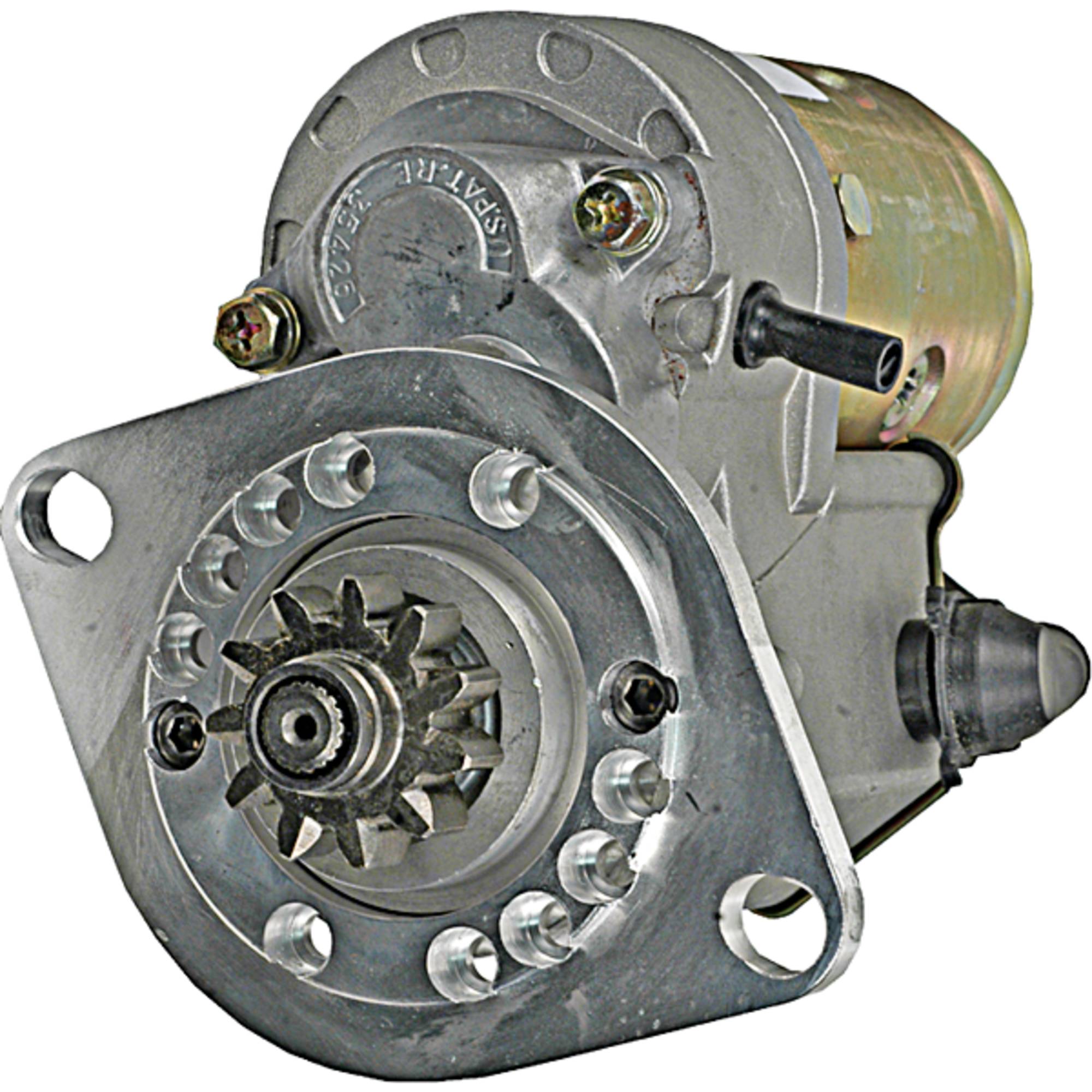

| Description | Starter |
| Critical Note | Please Review The Fitment Data Contained In The Publications Tab |
| Volt | 12 |
| Power | 2 kw |
| HP | 2.682 |
| Rotation Direction | Clockwise |
| Electric Starter Type | Offset Gear Reduction (OSGR) |
| Number Of Teeth | 11 |
| Gear OD | 1.606" |
| Gear OD | 40.800mm |
| Mount Hole ID 1 | 12.500mm |
| Mount Hole 1 Type | Unthreaded |
| Mount Hole 2 Type | Unthreaded |
| Notes | Includes (2) Mounting Bolts@ Battery & Motor Stud M8-1.25 Threaded@ Spade Switch Terminal |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| Arrowhead | IMI232-30 |
| IMI Hi Torque | IMI232-30 |
| J&N Electrical Products | 410-58001 |
| Lester | 18552 |
| Other OEMs | 199-107ND |
