| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
|
| Specifications: |

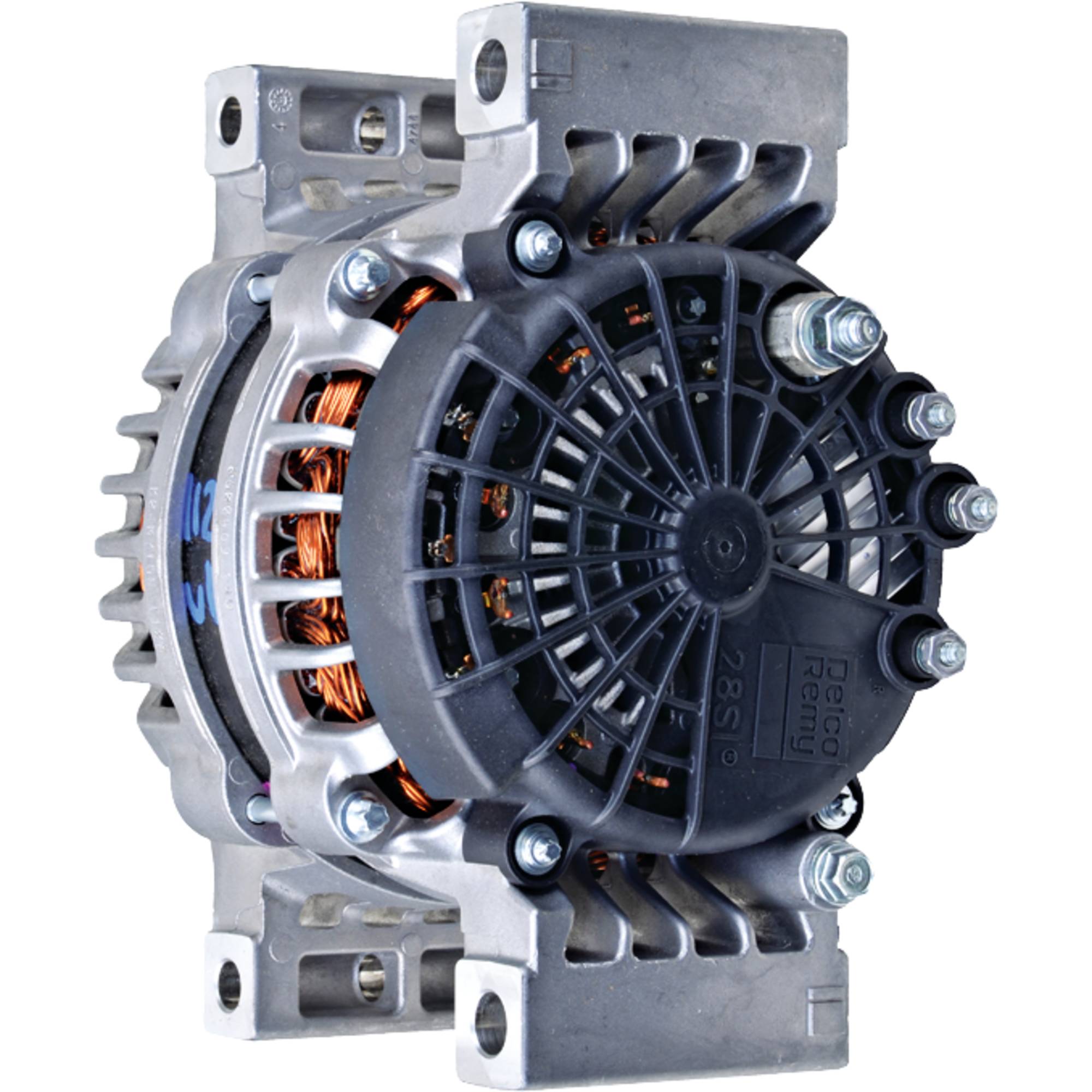

| Description | Alternator |
| FAMILY | Delco 28SI |
| VOLT | 24 |
| AMPS | 110 |
| CONDITION | New |
| PAD SPAN LENGTH | 107.95 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 10.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | 12.500mm |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNT HOLE ID 4 | 12.500mm |
| MOUNT HOLE 4 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 3.150" |
| MOUNTING EAR THICKNESS | 80mm |
| MOUNTING EAR 2 THICKNESS | 3.150" |
| MOUNTING EAR 2 THICKNESS | 80mm |
| MOUNTING EAR 3 THICKNESS | 3.150" |
| MOUNTING EAR 3 THICKNESS | 80mm |
| MOUNTING EAR 4 THICKNESS | 3.150" |
| MOUNTING EAR 4 THICKNESS | 80mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 5/16-18 |
| TERMINAL ID 3 | S |
| TERMINAL 3 SIZE | 10-24 |
| TERMINAL ID 4 | I |
| TERMINAL 4 SIZE | 10-24 |
| TERMINAL ID 5 | R |
| TERMINAL 5 SIZE | 10-24 |
| POLARITY | Negative |
| SHAFT PULLEY OD | 0.875" |
| SHAFT PULLEY OD | 22.220mm |
| SHAFT | 5/8-18" |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| ARROWHEAD | 400-12753, D8600469 |
| J&N ELECTRICAL PRODUCTS | 400-12753 |
| LESTER | 8762 |
| DELCO | 8600423, 8600469 |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
