| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
|
| Specifications: |

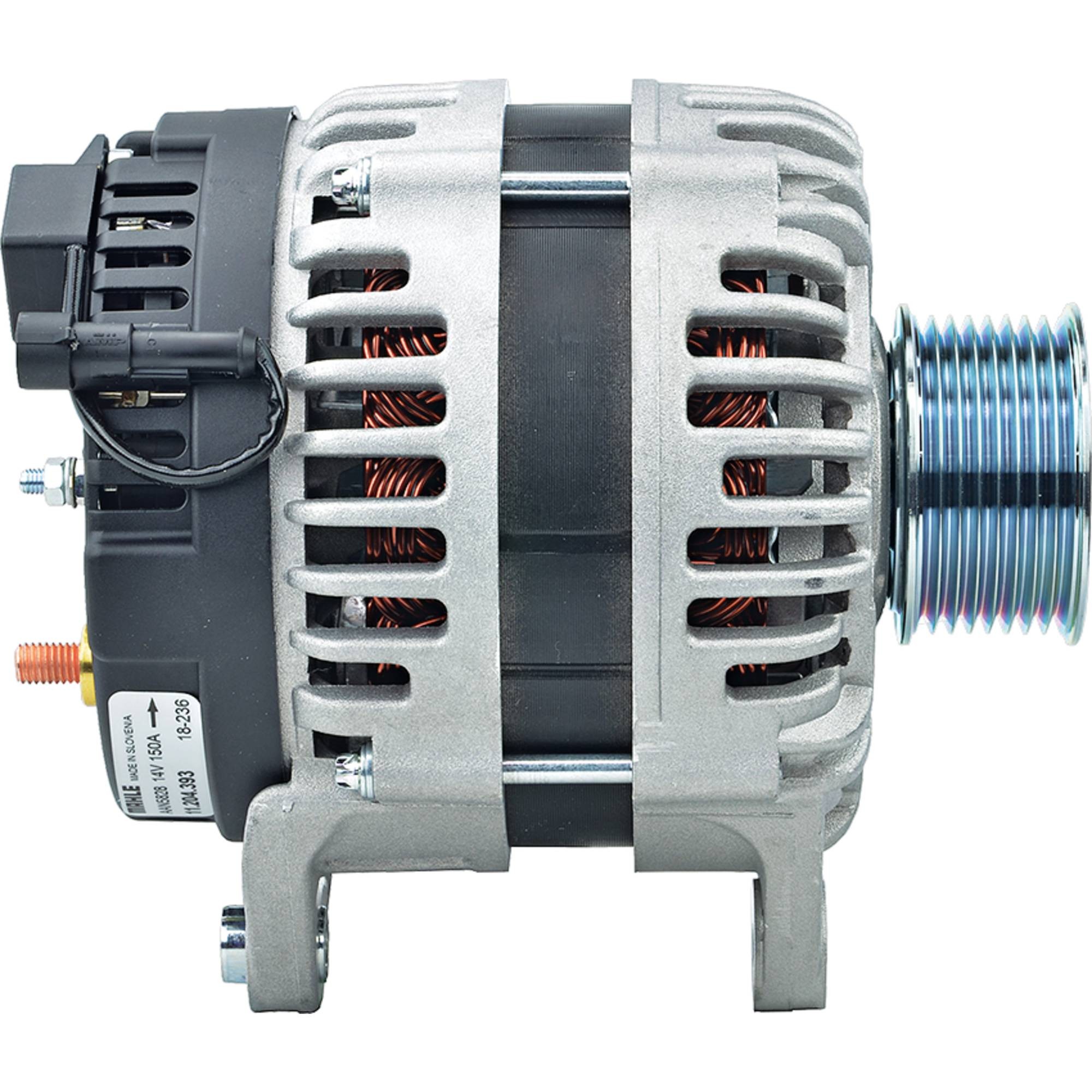

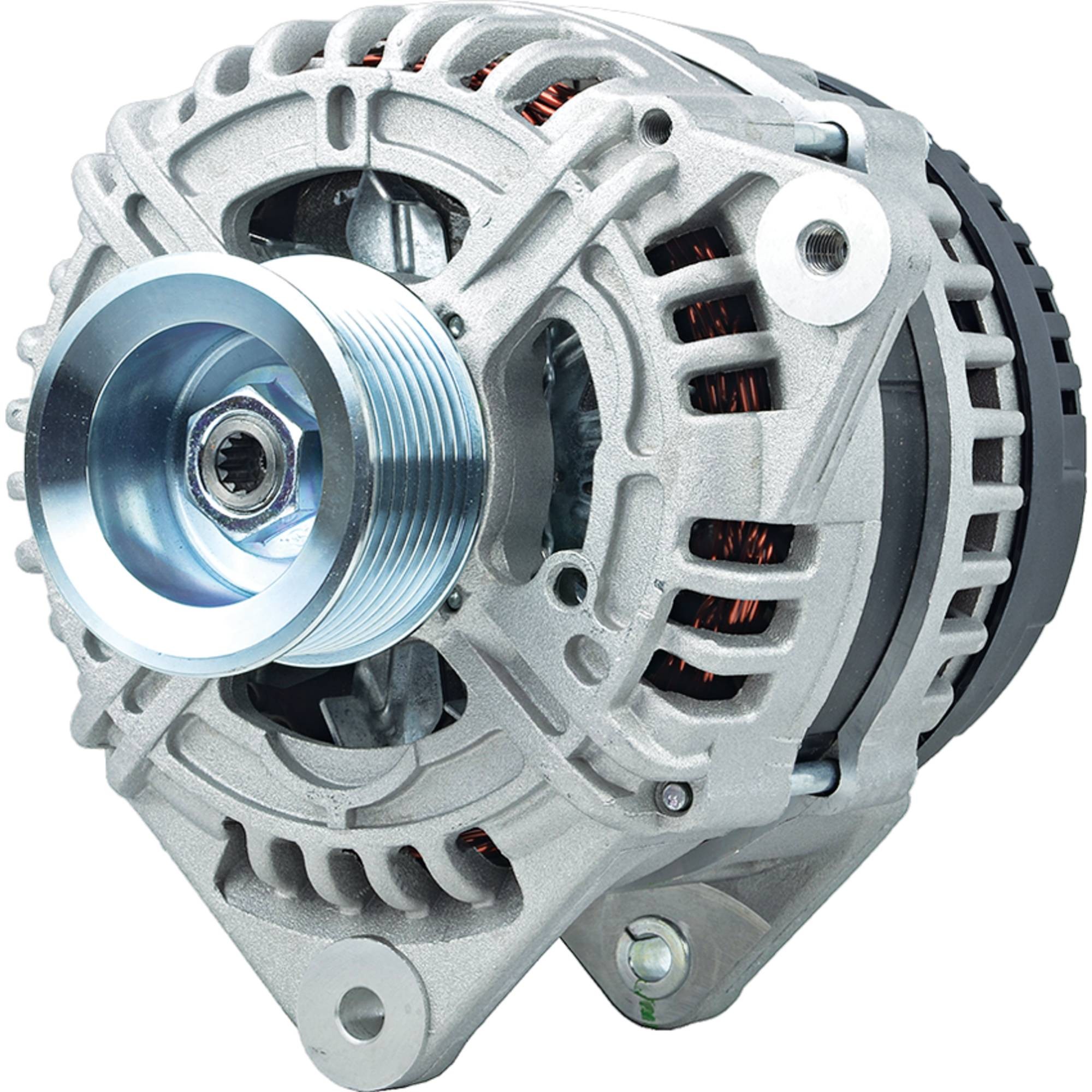

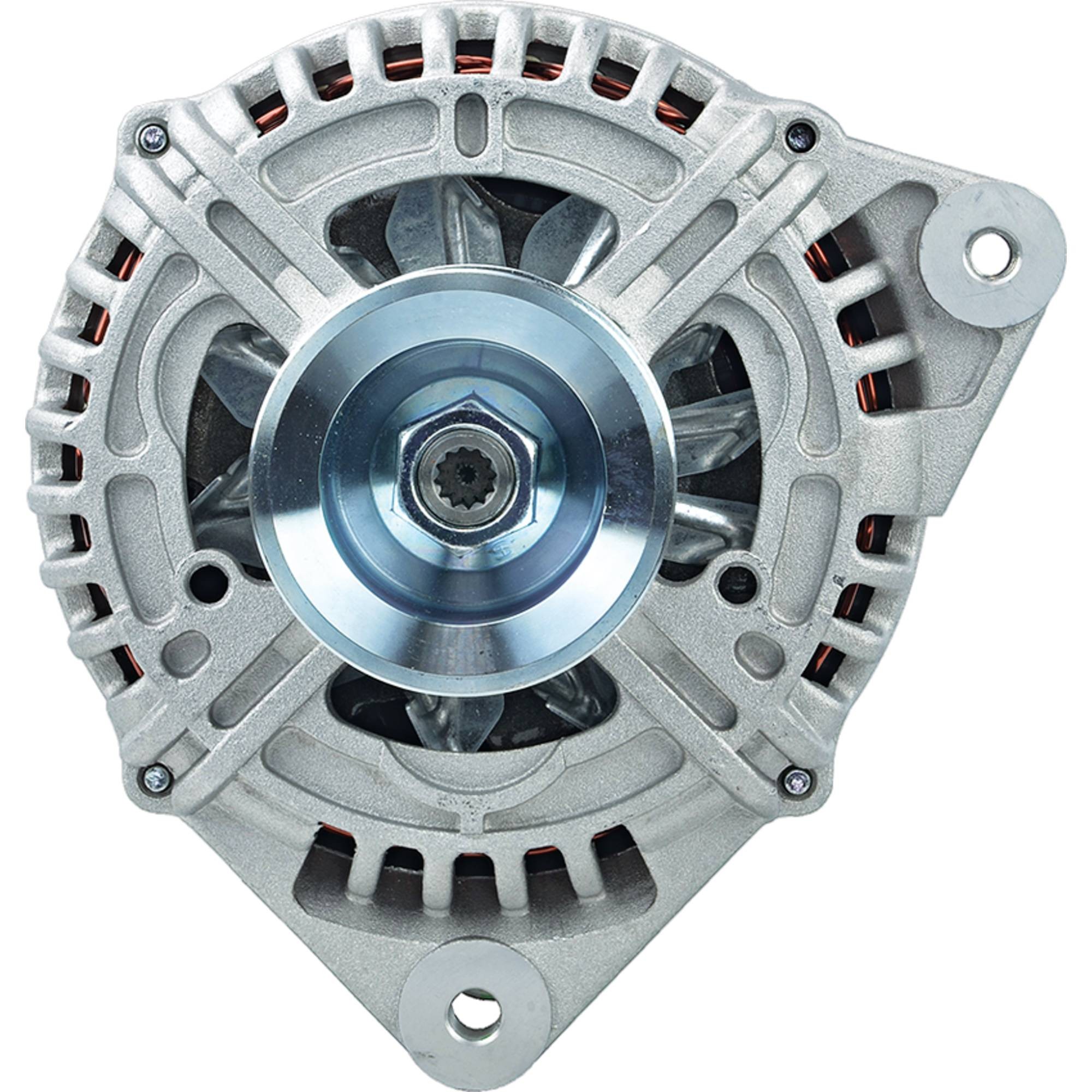

| Description | Alternator |
| Family | Letrika/Mahle AAN |
| Volt | 12 |
| Amps | 150 |
| Regulator Clock | 1:00 |
| Rotation Direction | Counter Clockwise |
| Mount Hole ID 1 | M7x1.00 |
| Mount Hole 1 Type | Threaded |
| Mount Hole 2 Type | Unthreaded |
| Mount Hole ID 3 | 8.200mm |
| Mount Hole 3 Type | Unthreaded |
| Mounting Ear Thickness | 0.543"/13.800mm |
| Mounting Ear 2 Thickness | 0.539"/13.700mm |
| Mounting Ear 3 Thickness | 0.787"/20mm |
| Fan Location | Internal |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M8x1.25 |
| Terminal ID 3 | D+ |
| Terminal 3 Size | M5x0.8 |
| Number Of Grooves | 8 |
| Pulley Type | Solid |
| Pulley Outer Diameter | 2.579"/65.500mm |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| Arrowhead | IA1378 |
| Mahle | 11.203.771, 11.204.235, 11.204.393, AAN5828, AAN8147, IA1378, MG480 |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
