| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
| Scania | | G480 | | 12700cc, 12.7L DC13.07 | | Scania | | P270 | | 9000cc, 9.0L DC9.12 | | Scania | | P480 | | 12700cc, 12.7L DC13.07 | | Scania | | R480 | | 12700cc, 12.7L DC13.07 |
|
| Specifications: |

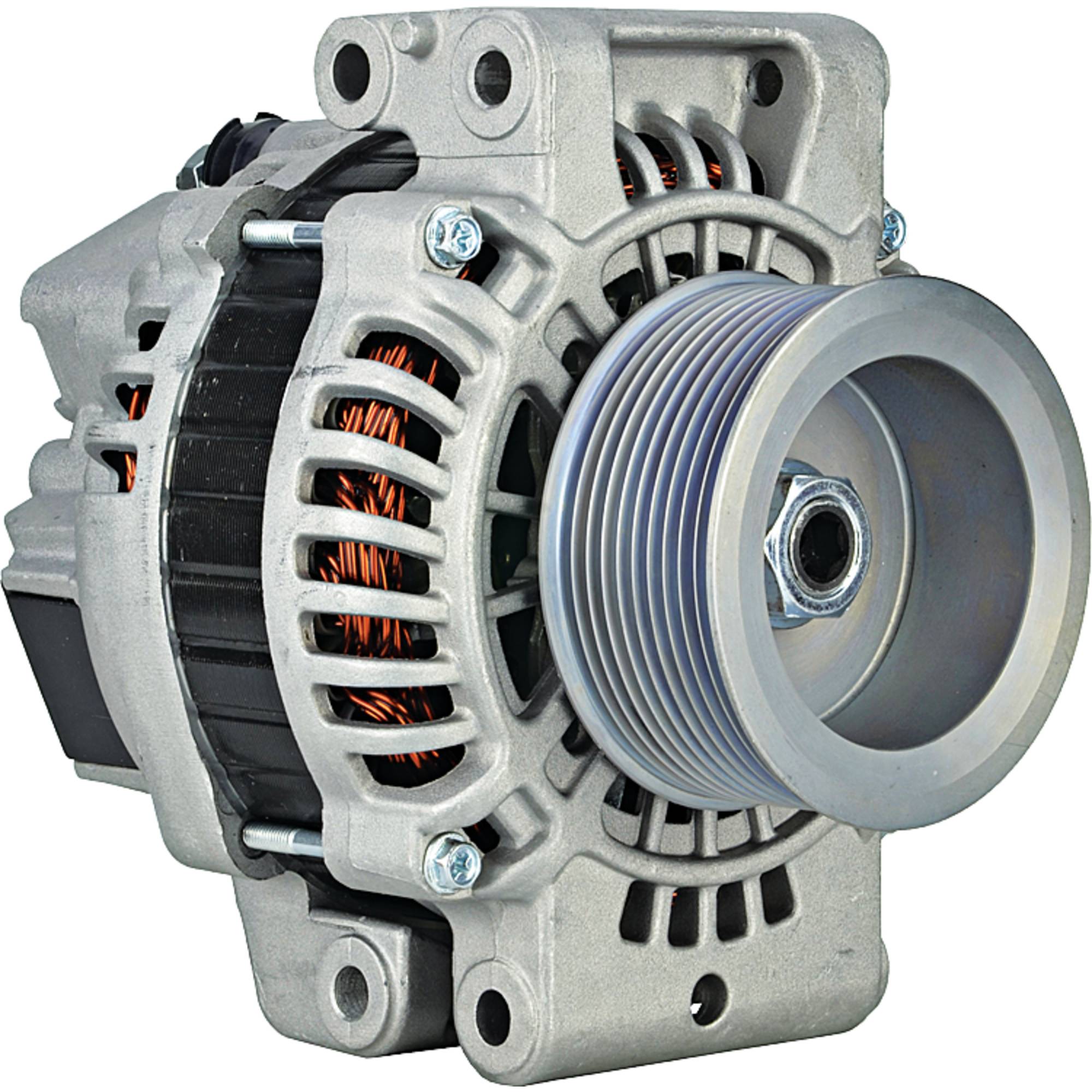

| Description | Alternator |
| Volt | 24 |
| Amps | 100 |
| Regulator Clock | 1:00 |
| Rotation Direction | Clockwise |
| Mount Hole ID 1 | 8.600mm |
| Mount Hole 1 Type | Unthreaded |
| Mount Hole ID 2 | 9.300mm |
| Mount Hole 2 Type | Unthreaded |
| Mount Hole 3 Type | Slotted |
| Mount Hole ID 4 | 9.100mm |
| Mount Hole 4 Type | Unthreaded |
| Mounting Ear Thickness | 3.425"/87mm |
| Mounting Ear 2 Thickness | 3.425"/87mm |
| Mounting Ear 3 Thickness | 3.425"/87mm |
| Mounting Ear 4 Thickness | 3.425"/87mm |
| Fan Location | Internal |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M8x1.25 |
| Polarity | Negative |
| Number Of Grooves | 10 |
| Groove OD | 3.461"/87.900mm |
| Pulley Type | Solid |
| Pulley Outer Diameter | 3.622"/92mm |
| Notes | 5-Pin Regulator Plug @ DFM, S, IG, L, W |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| Arrowhead | 400-48235 |
| Lester | 20290 |
| Lucas Electric | LRA03706 |
| Mitsubishi | A004TR5691, A4TR5691 |
| Scania | 1884268 |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
