| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
|
| Specifications: |

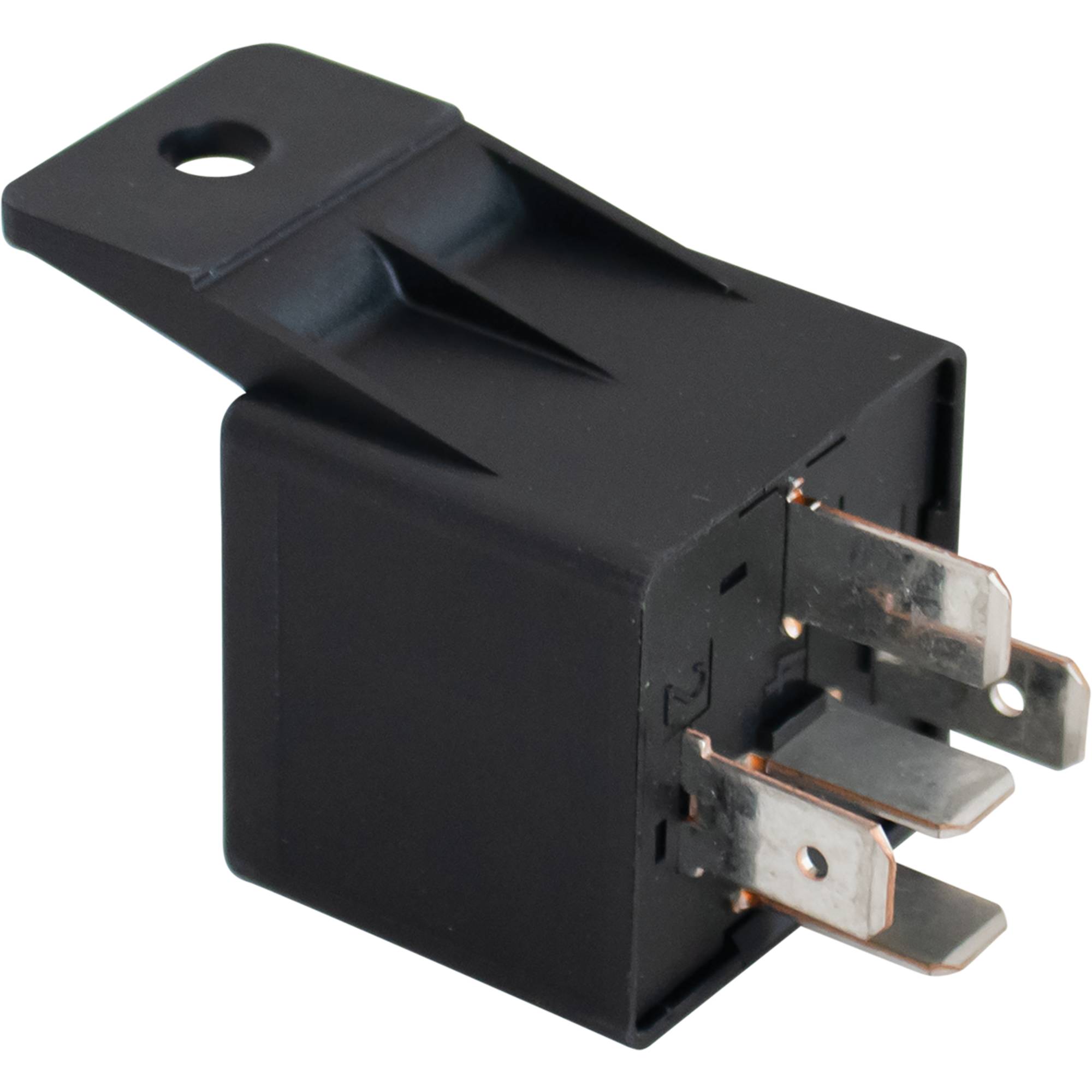

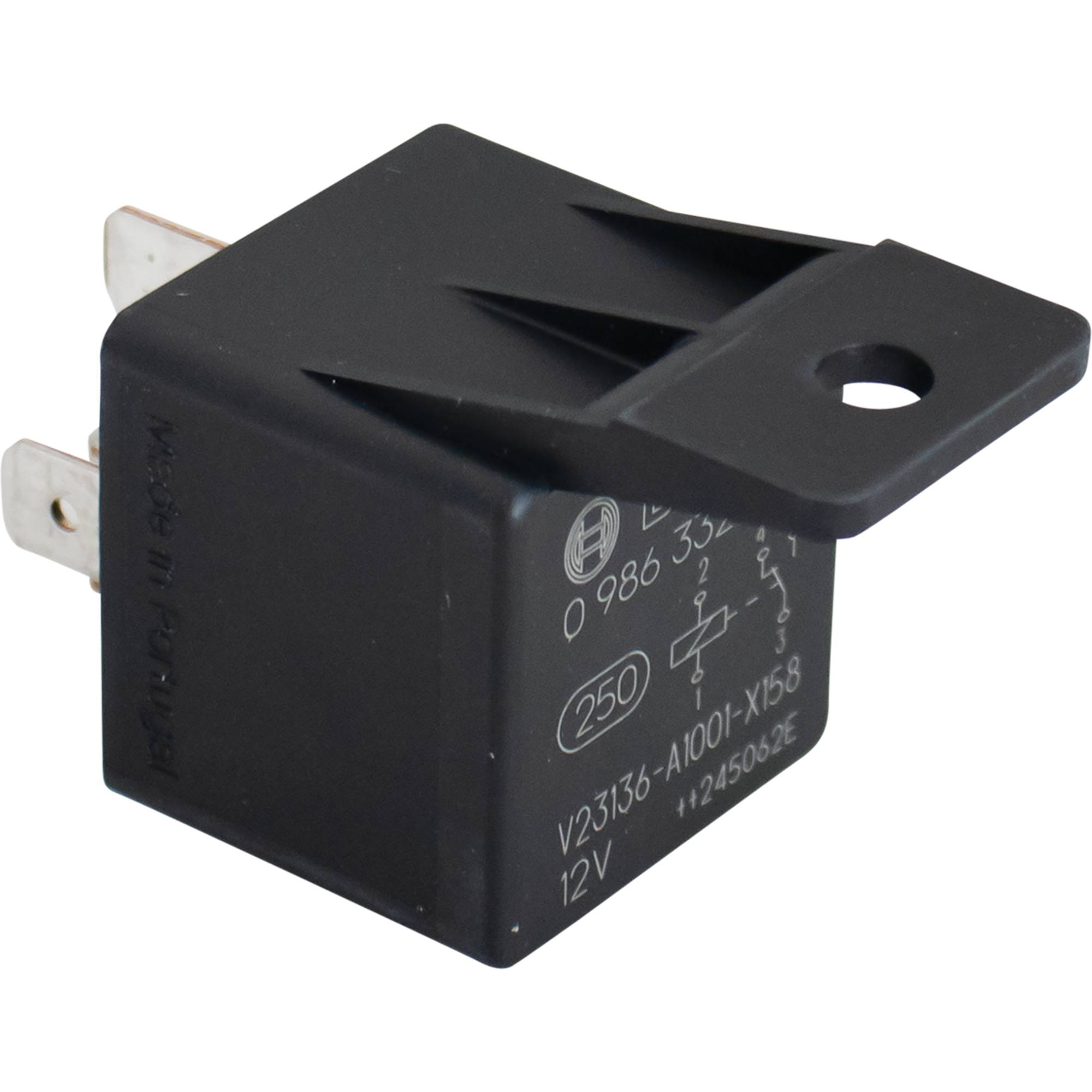

| Part Type | Mini Relay |
| Volt | 12 |
| Amps | 30 |
| Terminal ID 2 | 30 |
| Terminal 2 Size | 6.3mm x 0.8mm |
| Terminal ID 3 | 85 |
| Terminal 3 Size | 6.3mm x 0.8mm |
| Terminal ID 4 | 86 |
| Terminal 4 Size | 6.3mm x 0.8mm |
| Terminal ID 5 | 87 |
| Terminal 5 Size | 6.3mm x 0.8mm |
| Terminal ID 6 | 87a |
| Terminal 6 Size | 6.3mm x 0.8mm |
| Cap Composition | Plastic |
| Contact Config | Single Pole, Double Throw (SPDT) |
| Duty Cycle | Continuous |
| Includes | Change Over Contacts, Mounting Bracket |
| No of Terminals | 5 |
| Plated Terminals | FALSE |
| Resistance Type | Coil Only |
| Resistance | 85 ohms |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| ARROWHEAD | B0332209150, SSW2856 |
| BOSCH | 0332100020, 0-332-100-020, 0332200009, 0-332-200-009, 0332200013, 0-332-200-013, 0332204125, 0-332-204-125, 0332204150, 0-332-204-150, 0332204172, 0-332-204-172, 0332204801, 0-332-204-801, 0332209150, 0-332-209-150, 0332209150441, 0332209150BLK, 0986AH0625, 36032, 36042 |
| CASEIH | 1983420C1, 399158 |
| DELCO | D1708A |
| EMP | 4-6266 |
| FIAT | 60501035 |
| FORCE | 87-F660917 |
| HELLA | 4RD933332-01, 87499, 933332011, H41388461 |
| IVECO | 1164017, 8109522 |
| J&N ELECTRICAL PRODUCTS | 240-01035 |
| LEECE NEVILLE | 6014R |
| MAN | 81259020111, 81259020238 |
| MERCEDES | 001-935-41-06 |
| PORSCHE | 911-799-613-56 |
| SIERRA MARINE | 18-6266 |
| VOLVO | 1214764, 3858081, 3858809, 854357-1, 872300, 876040-7 |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
