| New Aftermarket Part From Total Power Parts |
| Applications: |
| MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
|
| Specifications: |

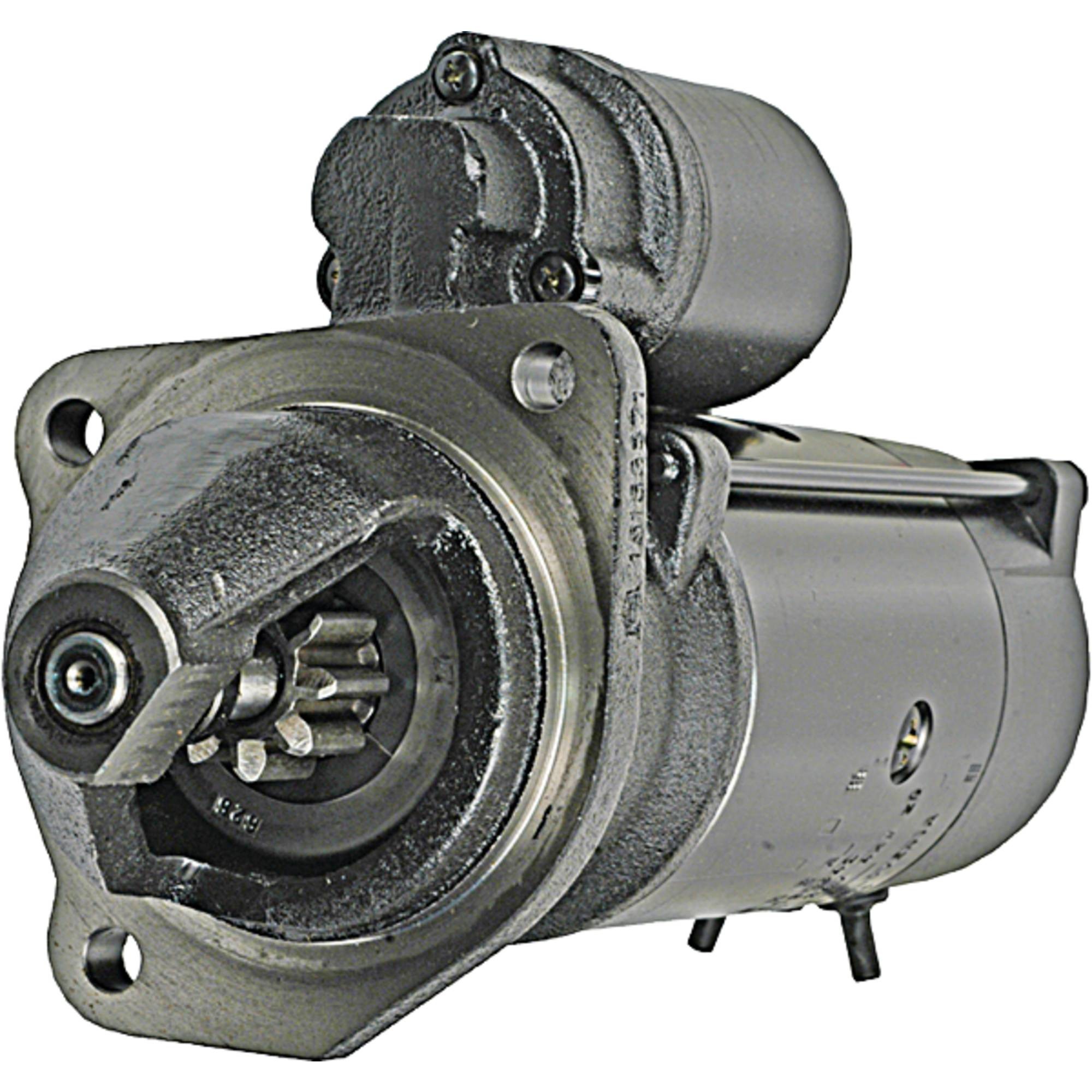

| Description | Starter |
| Family | Letrika/MAHLE AZJ |
| Volt | 24 |
| Power | 4 kw |
| Hp | 5.364 |
| Condition | New |
| Rotation Direction | Clockwise |
| Electric Starter Type | Planetary Gear Reduction (PLGR) |
| Number Of Teeth | 9 |
| Gear OD | 1.335" |
| Gear OD | 33.900mm |
| Mount Hole ID 1 | 10.900mm |
| Mount Hole 1 Type | Unthreaded |
| Mount Hole 2 Type | Unthreaded |
| Mount Hole ID 3 | 10.900mm |
| Mount Hole 3 Type | Unthreaded |
| Battery & Motor Studs M10-1.5 Threaded |
Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
| Replaces these part numbers: |
| Arrowhead | B0001231005, B0001263008, IS0842, MS232, SIA0008 |
| Atlantic Quality Parts | 1300-0104 |
| Atlas Copco | 2913163700 |
| Bosch | 0001231005, 0-001-231-005, 0001263052, 0001364100, 0001364301, 0986012700, 0986021000, 0-986-021-000, SR5065LH |
| Deutz | 1163626, 1179586, 1180999, 1183122, 1183239 |
| J&N Electrical Products | 410-29014, 410-29031 |
| KHD | 118-0999, 1182235 |
| Lester | 18958 |
| Letrika/Iskra | 11.130.842, AZF4515, IS 0842 |
| Lucas Electric | LRS01936, LRS960 |
| Mahle | 11.130.151, 11.130.673, 11.130.842, AZF4515, AZJ3222, AZJ3522, IS0151, IS0842, MS232, MS613 |
| Marelli | 943252215, MSR705 |
| Other OEMS | 2300088A, 4159015, 5411656432, 6200827, 7026025A, 8EA726149-001, CS501 |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
