  • Oil Filter for Briggs & Stratton; 120-485

PART FINDER PLEASE SELECT YOUR VEHICLE TO SEE EXACT FIT

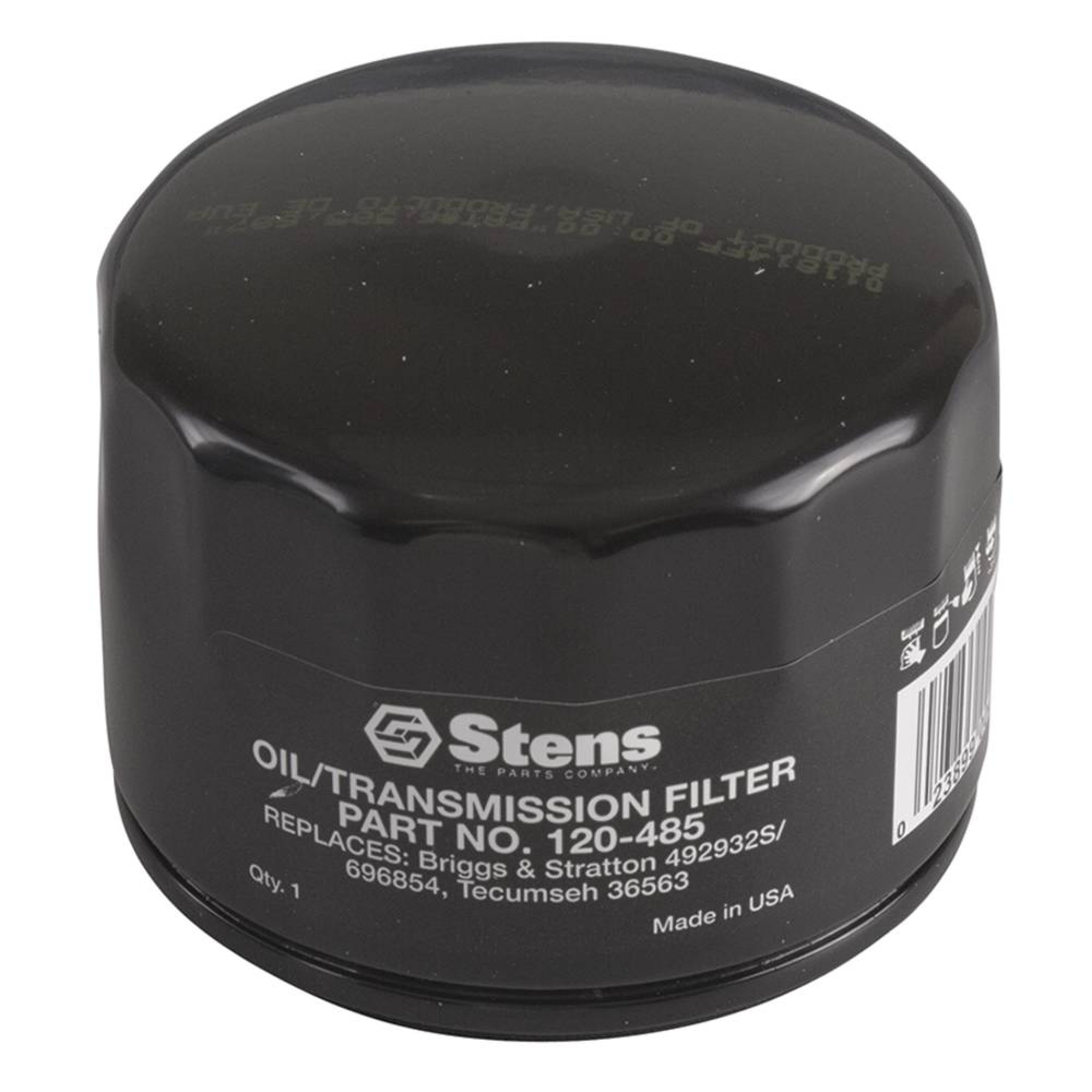

Oil Filter for Briggs & Stratton; 120-485

# 120-485
Free Shipping on orders over $75
1 Year Warranty on all products
30 Day Returns for a full refund or replacement
Only $7.99

If you're having any issues at all with finding, buying, or receiving your part, please contact us.

Description
New Aftermarket Part From Total Power Parts

Applications:
MAKE TYPE MODEL YEAR ENGINE
Briggs & StrattonEngineVanguard engines small version filter; pressure lubrication engines
E-Z-GOGolf CartST480
GravelyZero-Turn MowerXL Series
John DeereMower2027R, 2032R, 2720, 3005, 3032E, 3033R, 3038E, 3038R, 3039R, 3045R, 3046R, 3120, 3320, 3520, 3720, 4005, 4044M, 4049M, 4052M, 4066M, 4105, 4115, 4200, 4210, 4300, 4310, 4400, 4410, 4510, 4600, 4610, 4700 and 4710 tractors, F620, F680, F687, M653, M655, M665, Z245, Z425, Z510A, Z520A, Z910A and Z920A ZTrak s; 1200 Hydro Rake and 800 Aercore aerators
KawasakiEngineFB460V, FC420V, FC540V, FD501D, FD590V, FR651V, FR691V, FR730V, FX481V, FX541V, FX600V, FX651V, FX691V and FX730V
KohlerEngineCH18-CH25 and CV18-CV25; for 18 thru 25 HP engines
KubotaAgricultural TractorB1550, B1700, B1750, B20, B21, B2100, B2301, B2320, B2400, B26, B2601, B2620, B2630, B2650, B2920, B4200, B5100, B6100, B6200, B7200, B7500, B7510, B8200, B9200, BX2200, BX22, BX23, BX2660, BX2670, BX2680, F2000, F2100, F2260, F2560, F2680, F2690, F2880, F3080, F3990, RTV1140, RTV-X1100, RTV-X1120, RTV-X1140, U25S, ZD1211, ZD1511, ZD25, ZD28, ZD326, ZD331 and ZG327
LiebherrConstruction EquipmentLoader L507 with Deutz BF4L1011FT engines
TecumsehEngineOHV130, OHV135, OHV150, OHV155, OHV165, OHV175, OHV180, TVT691, OV and VTX
TerramiteBackhoe LoaderRoller Paver with Briggs & Stratton Vangaurd engines and T5C loader with Briggs & Stratton 18 HP IC
ToroMowerUnits with Kawasaki FB460V, FC420V, FC540V, FD501D, FD590V, FR651V, FR691V, FR730V, FX481V, FX541V, FX600V, FX651V, FX691V and FX730V engines; Kohler CH18-CH25 and CV18-CV25; for 18 thru 25 HP engines; most gas Greensmaster Triplexes

Specifications:
Color may vary from OEM
Consistent pressure relief valve operation maintains dependable oil delivery
Engineered for performance
Filter captures contaminants effectively while maintaining efficient flow
Low flow restriction supports fast oil circulation and reliable lubrication at startup
Part number and application info printed on filter for easy identification throughout service life
Strong drain-back control reduces dry startup exposure
Validated through testing
Critical NotePre-Order now for inventory arriving in mid October
Height2 1/4"
Made ByAn OEM Supplier
OD3"
Packaging typeBranded box
Thread3/4"-16

Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service.

Replaces these part numbers:
Ariens21548100, 21550800
Bad Boy063-2004-00, 063-4025-00, 063-8018-00
Bobcat2722463, 416-4153, 416-4537
Briggs & Stratton4049, 4049H, 4154, 4237, 492056, 492932, 492932B, 492932S, 5049, 5049A, 5049B, 5049C, 5049D, 5049E, 5049H, 5049K, 5049W, 5062H, 5076, 5076D, 5076H, 5076K, 695396, 696854, 7045184YP, 795137, 795890, 798576, 841023B, 842921, 842921B, BS-492932B
Craftsman24603, 33935
Dixie Chopper900862
E-Z-GO492932S
Ferris4206, 5021144X1, 5021144X1SM, 5102278X1, 696854, 795890
Grasshopper100803
Gravely21551600
Husqvarna531300938, 531307043, 531307389
Hustler602581
Jacobsen4929325
John DeereAM119567, AM125424, GY20577, LG4153, LG491056, LG492932S, M139118
Kawasaki49065-0721, 49065-0721BK, 49065-0736, 49065-2076, 49065-2077, 49065-7002, 49065-7007, KM-49065-0721, KM-49065-7007
Kohler28 050 01-S, 52 050 02-S1, KH-28 050 01-S, KH2805001S, KH-28-050-01-S, KH-52 050 02-S1, KH5205002S1, KH-52-050-02-S1
Land Pride831-053C
MTD5049D, 5062D
Simplicity5021144X1SM
Snapper Pro5102278X1
Tecumseh36563
Toro107-7817

Stens Oil Filters
Combining the best of value and performance, Stens oil filters protect your engine from particles that could cause harmful deposits. The filter medium traps particles, keeping them from traveling with the oil throughout the system. To boost effectiveness, filter mediums are folded into pleats to increase the surface area for capturing particles.

Oil Filter Features
When indicated, Stens oil filters have pressure relief valves and anti-drain valves. Pressure relief valves open to allow oil to flow if the filter medium becomes too saturated. This valve protects the engine from oil starvation. An anti-drain valve prevents oil from emptying from the filter when the engine is off. This feature is important so that the engine receives sufficient oil when started. An anti-drain valve reduces engine wear that can occur due to insufficient lubrication on start up. On top of best-in-class performance, Stens oil filters are value priced to be easy on the budget compared with many competitive products. Most Stens oil filters are made in the USA.


Warranty
All of our products are covered by our one year warranty from date of purchase. If you have a problem, we will take every step to assist you.
